Stainless Steel (SS304 / SS316) Gas Springs

304/316 stainless steel gas spring is often used for environmental protection food storage cabinet door, medical equipment telescopic rod, yacht skylight support.

The characters of stainless steel gas spring:

Precise oil seal

1. With multi-channel protection, rust, wear resistance, high temperature resistance and other characteristics.

Stainless steel thickening cylinder

1. High pressure, ensure cylinder block is not easy to deformation, service life is longer than conventional gas spring.

1.

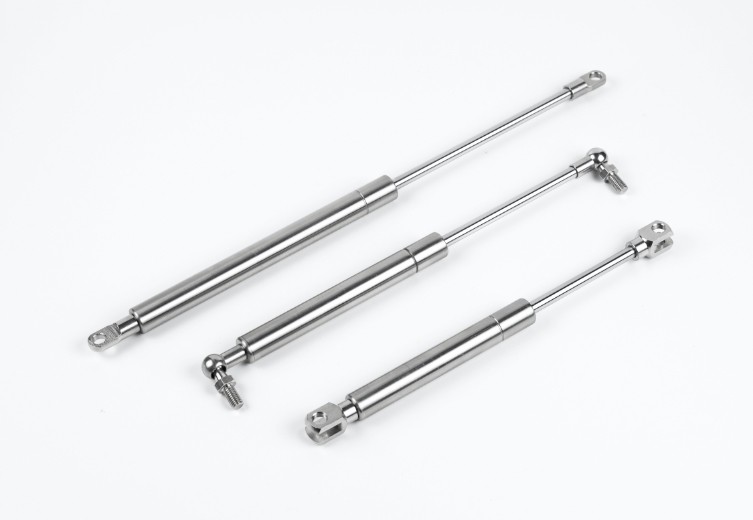

   Our Stainless Steel Gas Springs
   We can custom produce SS304 & SS316 gas springs (gas struts), once you want to order, pls confirm the type of stainless steel.

Parameter diagram: the technical parameters are only for your reference (the production can be designed as the client requires)

TYPE	Pole d (mm)	Cylinder D(mm)	Stroke S（mm）	LENGTH L（mm）	F/N
SS6/16	Ø6	Ø15	40-110	150-300	20-300
SS8/18	Ø8	Ø18	40-250	150-600	30-500
SS10/22-1	Ø10	Ø22	60-160	200-400	50-800
SS10/22-2	Ø10	Ø22	160-200	400-500	50-1000
SS10/22-3	Ø10	Ø22	200-250	500-600	50-1000
SS10/22-4	Ø10	Ø22	250-300	600-700	50-1000
SS10/22-5	Ø10	Ø22	300-340	700-800	50-1000
SS10/22-6	Ø10	Ø22	400	900	50-1000

Custom service: If you can not find a specification which matached your requirement, pls contact us, and tell us the diameters of pole & cylinder, stroke, length, and Force, end connecters and other necessary informations, or send us your drawings, we can custom the gas spring for you. L/T for new gas spring samples: 10days.
