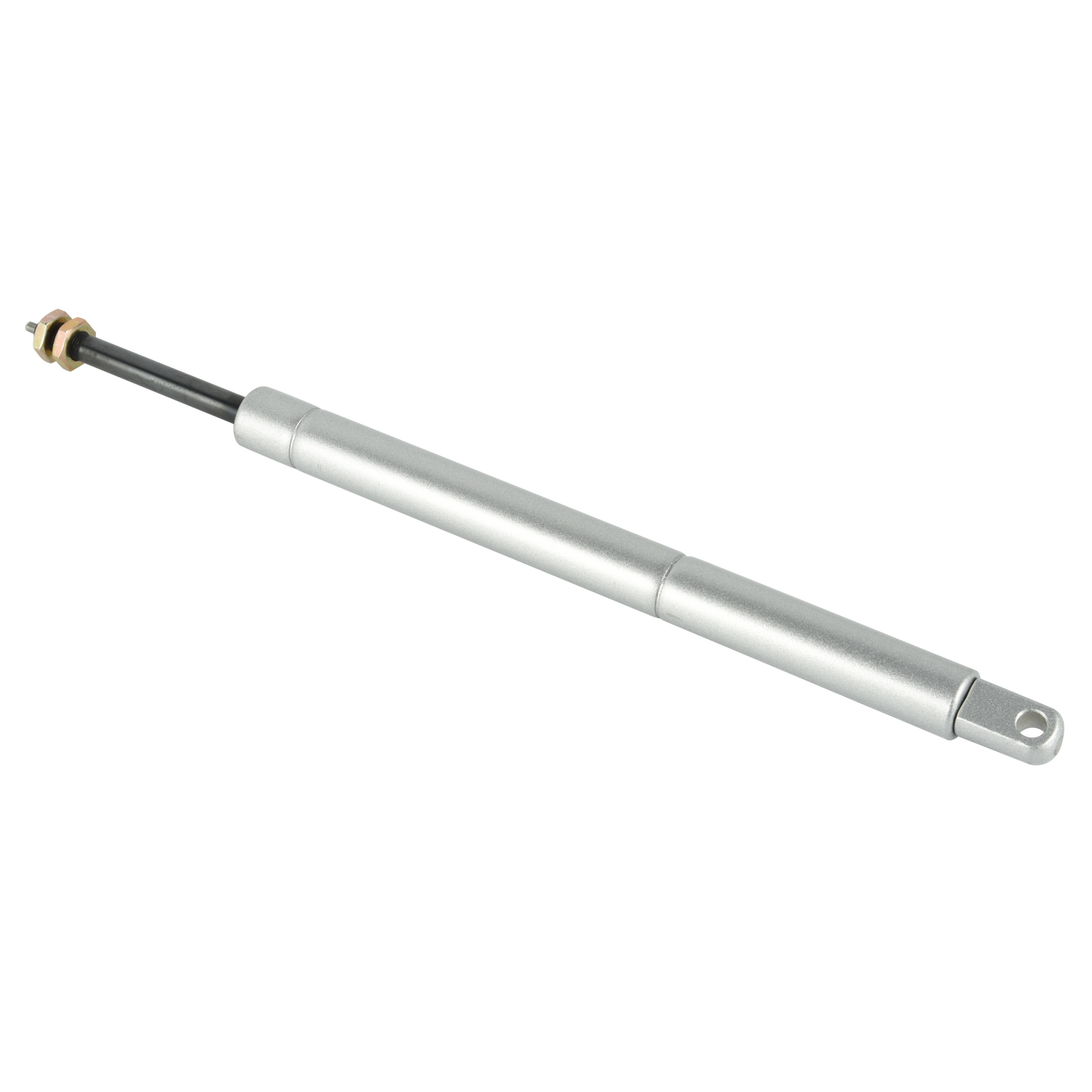

KQ10-22 Adjustable Gas Spring

KQ10-22 Lockable Gas Spring is a type of adjustable gas spring. It is designed to be used in low-pressure locking devices, such as desk lift, monitor stand, etc.

The main function is to provide adjustable tension, The locking mechanism ensures that the device stays in one place when locked. This makes it suitable for use in any application which requires hold-in-place locks.

Product Detail

Features and Benefits

Tube diameter 22MM, rod diameter 10MM, support gas spring, can be used on Adjustable Desks / Tables, Chairs and all ergonomic equipments.

KQ10-22 Lockable gas spring is supplied by Winson Gas Spring. It is a lockable spring, designed to provide locking and adjustable force in low or medium pressure range. It is a gas-filled device containing nitrogen gas within a tension-loaded steel cylinder tube which pushes a piston rod against the force of a spring. The gas is pressurized, which allows the piston rod to move until it compresses the spring and creates pressure in the cylinder. The movement of the piston rod is adjustable and the spring will remain in the locked position once the desired pressure is achieved.

The KQ10-22 lockable gas springs are widely used in applications such as desks, monitor stands, etc. They are easy to install and provides safe, adjustable and comfortable movements.

In addition, the adjustable gas spring also allows precise adjustment to be made to the stiffness of the device to give exact tension needed for different applications. It is an ideal locking solution for small to mid-sized devices with lower pressure applications, such as furniture, displays, transportation systems, and more.

F1 Force	Stroke	Surface treatment	Standard of product execution	Service life
50N-800N.	20MM-200MM	tube painting, piston rod hard chromium plating\QPQ	GB/T 25751-2010	At least 30000 times

Calculation of tube length and stroke

L（ Total length of fully extended）= A（ tube length）+ S（ Stroke）+ 9.5（ Installation length on the tube's end）+ 12（ Installation length on the piston rod's end）

Computational formula of tube length and stroke: A≥S+25.（ As the length of stroke increases, the length of tube will increase.)

High precision
Quality inspection
Factory direct sale
A variety of specifications
50000 cycles

Advantages

TUBE

We have our own electrostatic coating line control quality.

ROD

We choose QPQ material, Salt Spary Test more than 96 hours, more environments friendly.

ENDING

Winson Gas Spring provide all kinds standard end release head & the control cables (normal type & length adjustable type) for lockable gas pring, meet the needs of users in different industries.

Applications

Gas struts or gas springs are utilised in a wide range of applications. Some of the most common areas you would find gas struts are;

• open and closure ofthe cars' engine cover and back doors

• luggage cases for motor

• buses

• graph plotters

• aviation storage shelves

• printing machinery

• food processing

• furniture

• cabinets

• mechanical devices

• woodworking

• sofa cabinets

• office devices

• various boxes

• medical

• facilities

• fitness equipment

• mold equipment and the like

Various gas springs for your best solution

Accessories
