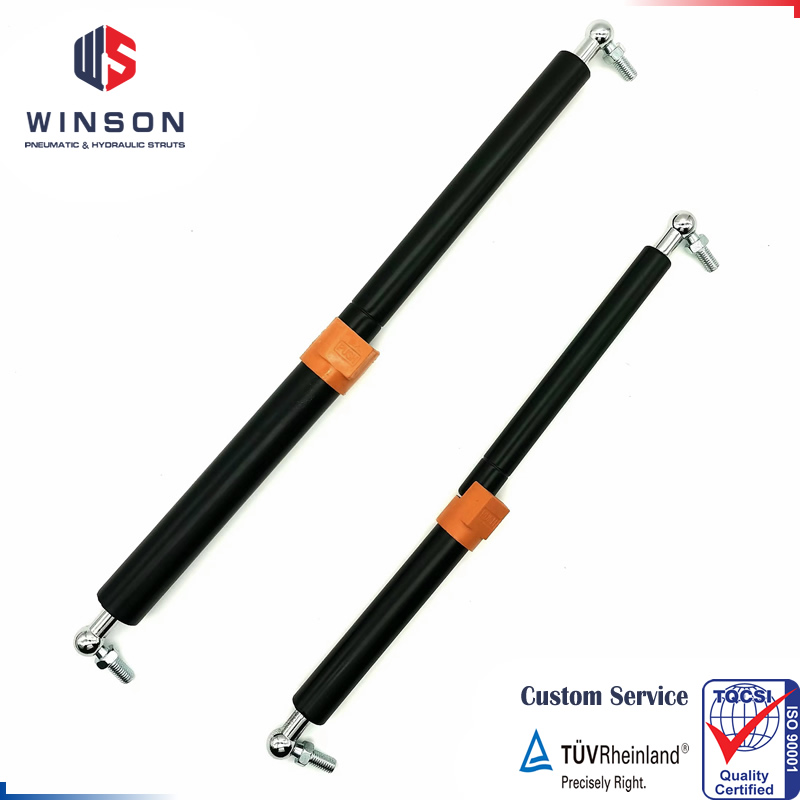

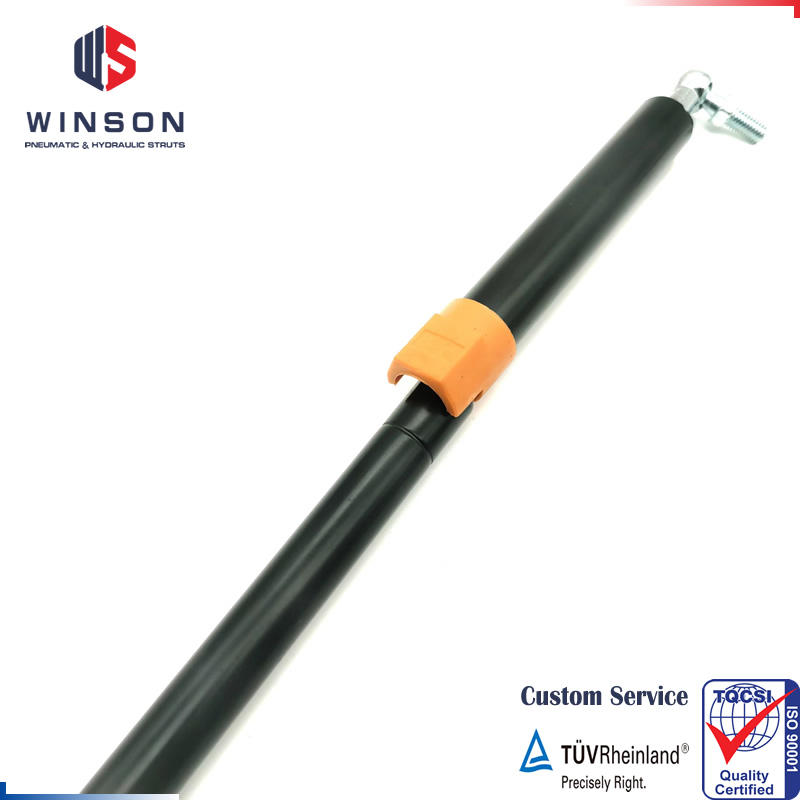

Forklift Safty Gas Spring

Compression Gas Spring Gas Damper Gas Strut Gas Shock Gas lift spring

The principle of the self-locking (protective sleeve) gas spring is the same as that of the compressed gas spring, but the product is equipped with a protective sleeve. Can play a protective role. It is mainly used in construction machinery and fields with special safety requirements.

Compression Gas Spring Gas Damper Gas Strut Gas Shock Gas lift spring

Product Detail

The Function Of Safty Gas Spring

The gas spring with safety protection cover is mainly used on the gas spring on the equipment cover, which can play a double protection role, in case the equipment or the gas spring breaks and suddenly falls, to protect personal safety.

Can suitably protect the wearing and tearing that causes by external force factor in addition, and can suitably dustproof.

Features and Benefits

Cylinder diameter 18MM, rod diameter 8MM, lifting support gas spring, can be used on conference table lift socket, luggage and other products.

Diameter (d)	Diameter (D)	Stroke (s)	Length (L)	F1 Force	Surface treatment	Standard of product execution	Service life	Working Temperature
10	22	30MM-500MM	2S + 50mm	100-1200N	tube painting, piston rod hard chromium plating\QPQ	GB/T 25751-2010	At least 50000 times	-30℃ - 80℃

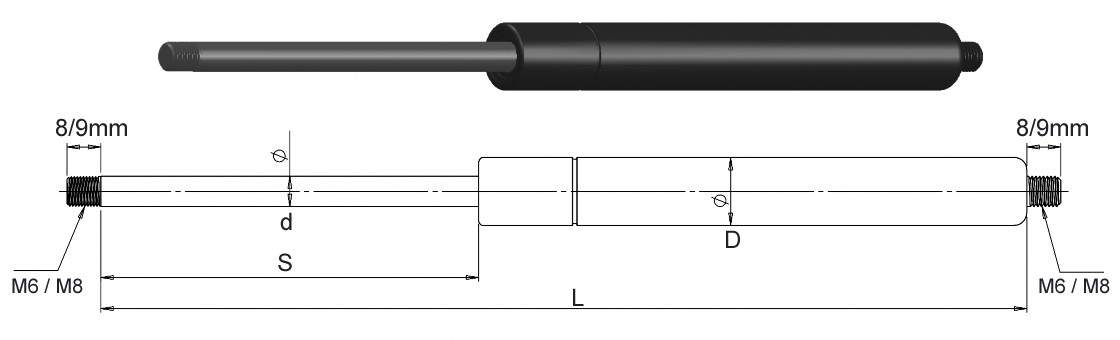

Calculation of tube length and stroke
L（ Total length of fully extended）= A（ tube length）+ S（ Stroke）+ 9mm（ Installation length on the tube's end）+ 9mm（ Installation length on the piston rod's end） Computational formula of tube length and stroke: A≥S+50.（ As the length of stroke increases, the length of tube will increase.)

Features Of Winson Gas Spring

High precision
Quality inspection
Factory direct sale
A variety of specifications
Reach to 100000 cycles

Advantages

Cylinder

The cylinder body is made of 1MM thick precision steel pipe, which has the characteristics of high pressure bearing, high smoothness, no deformation when heated and cooled, durable, and high safety factor. The gas spring made has good stability, increased service life, and eliminates hidden dangers of air leakage and oil leakage!

ROD

The surface of the piston rod has been treated by QPQ or hard chrome plating to meet the international export standard. The surface friction is small, the wear-resistant finish is good, there is no spot, and the salt spray test 72H does not rust

ENDING

Various end joints, to meet the different needs of customers, some of the eye hole joint sorted by cold heading forming and pure machining.

And we can custom end fittings according to customer requirements.

Applications

Gas struts or gas springs as they are also known are utilised in a wide range of applications. Some of the most common areas you would find gas struts are;

• open and closure ofthe cars' engine cover and back doors

• luggage cases for motor

• buses

• graph plotters

• aviation storage shelves

• printing machinery

• food processing

• furniture

• cabinets

• mechanical devices

• woodworking

• sofa cabinets

• office devices

• various boxes

• medical

• facilities

• fitness equipment

• mold equipment and the like

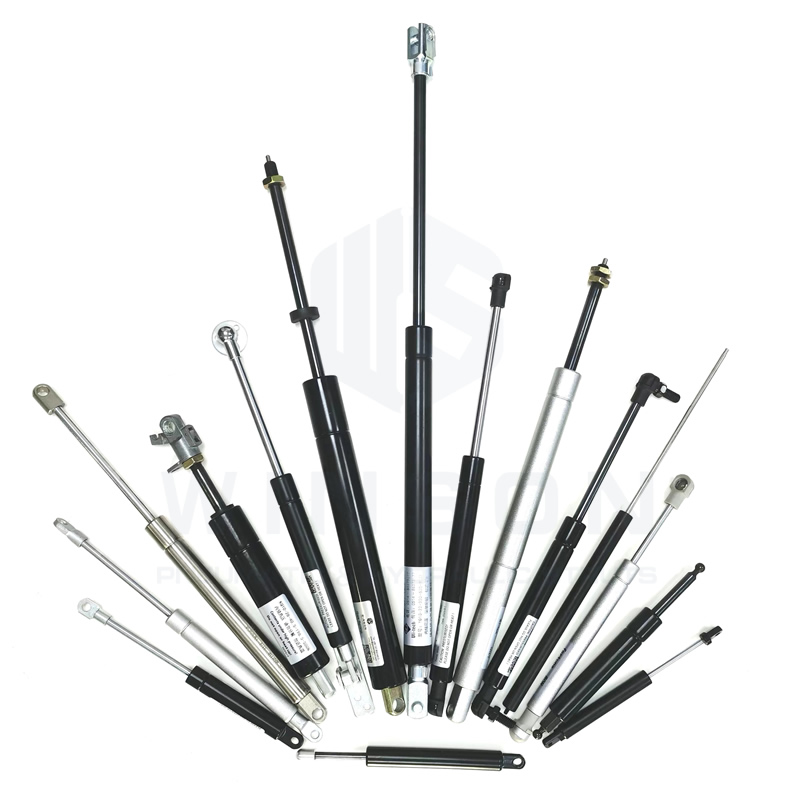

Various gas springs for your best solution

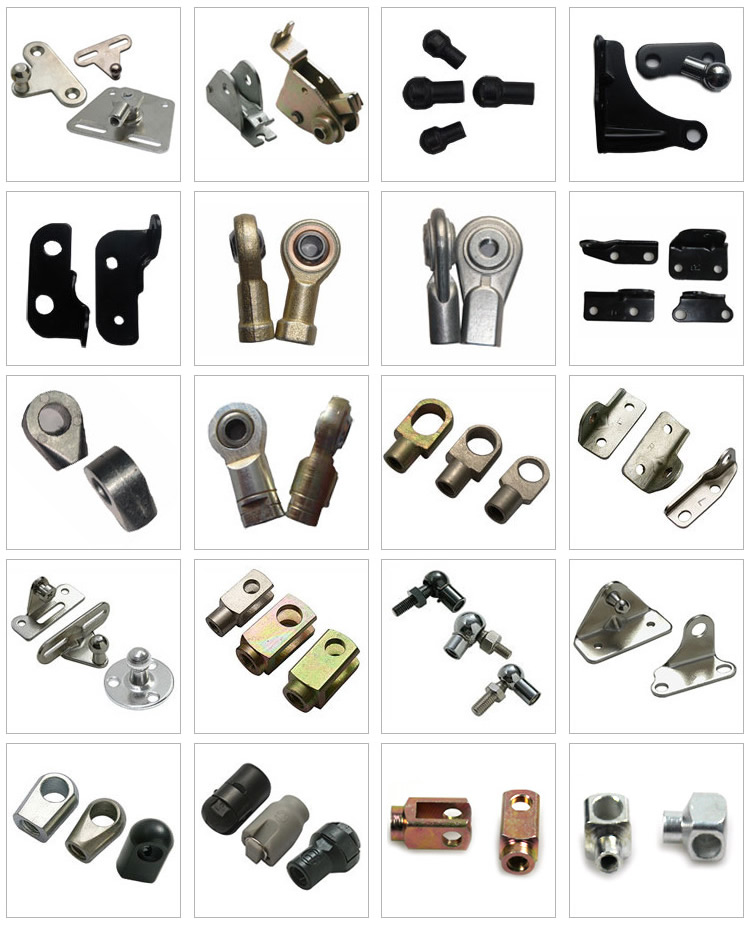

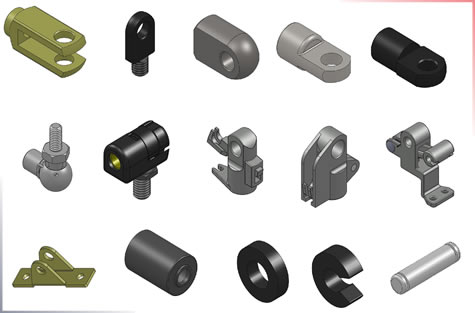

End Fittings

Comments: This is just to show you some of the conventional joints,If you can not find the end connecting fittings from above picture,plz contact with us and send your drawing or picture, we can find or custom make it for you.
