Damping Groove Gas Spring
Dynamic Damping Gas Spring Damping Groove Gas Spring Horizontal Installation Gas Strut Vibration Damping Gas Spring Hydraulic Gas SpringBy using a groove inside the cylinder, the damping characteristics of this gas spring specification can be adapted individually to the customers’ requirements.
Here, the damping is not realized by an orifice as for usual gas springs but by the groove inside the cylinder. This offers many advantages: Damping is effective in any position, it doesn’t matter if the installation of the gas spring is in horizontal position or with the piston rod showing upwards.
Dynamic Damping Gas Spring Damping Groove Gas Spring Horizontal Installation Gas Strut Vibration Damping Gas Spring Hydraulic Gas Spring
Features and Benefits
Gas spring with dynamic damping
These gas springs with full-stroke damping have been specially developed for the protection of delicate products, such as Forklift glass door,LCD screens, expensive high-tech equipment, technical machines, and medical equipment. The gas springs are available in the sizes 6/15, 6/19, 6/22, 8/19, 8/22, and 10/22.
Compared to standard gas springs that only have controlled oil damping at the end of the stroke, these gas springs provide full-stroke damping. The desired damping properties are applied in the form of a tapered groove completely to customer specifications. This tapered groove is filled with oil as soon as the piston rod enters or exits.
The groove will be designed so that the damping characteristic will meet the customer’s individual requirements.
- End damping is guaranteed in any position (horizontally or with the piston rod showing upwards)
- Individual damping characteristic is possible for the complete stroke
In order to be able to design the corresponding groove, we require detailed
information about the application as well as the requested function of the gas spring
Benefits of gas springs with dynamic damping
This type of damping has a number of advantages. For example, not only can controlled damping be achieved over the entire stroke, but the way in which the gas spring is mounted (with piston rod pointing upwards or downwards) does not affect the damping properties.
In order to use the tapered groove for your specific project, we require detailed information about the gas spring's final application and function.
Would you like to know more about the possibilities of gas springs with dynamic damping? Please contact our gas spring specialists.

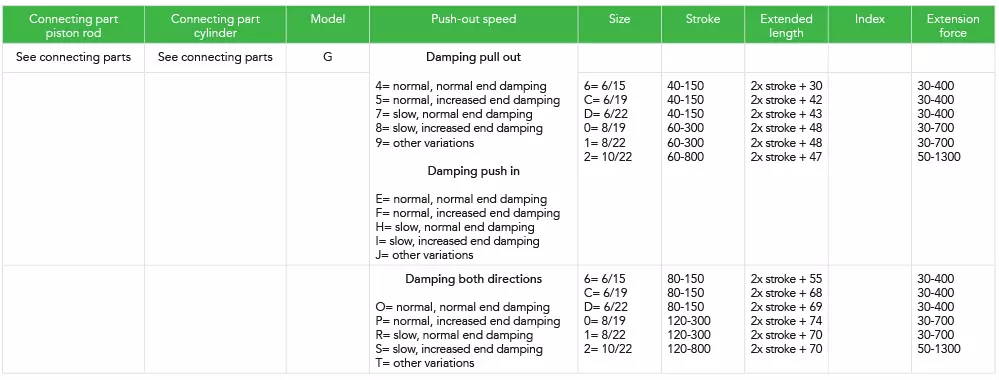

Specifications
| F1 Force | Stroke | Surface treatment | Materials | Service life |
| 50N-1000N | 30MM-500MM | Tube painting, piston rod hard chromium plating\QPQ. | SS304,SS316, Q235 & #45 steel | At least 30000 times |
Advantages
- High precision
- Quality inspection
- Factory direct sale
- A variety of specifications
- 30000 cycles
Cylinder
The cylinder body is made of 1MM thick precision steel pipe, which has the characteristics of high pressure bearing, high smoothness, no deformation when heated and cooled, durable, and high safety factor. The gas spring made has good stability, increased service life, and eliminates hidden dangers of air leakage and oil leakage!
ROD
The surface of the piston rod has been treated by QPQ or hard chrome plating to meet the international export standard. The surface friction is small, the wear-resistant finish is good, there is no spot, and the salt spray test 72H does not rust
ENDING
Various end joints, to meet the different needs of customers, some of the eye hole joint sorted by cold heading forming and pure machining.
And we can custom end fittings according to customer requirements.
