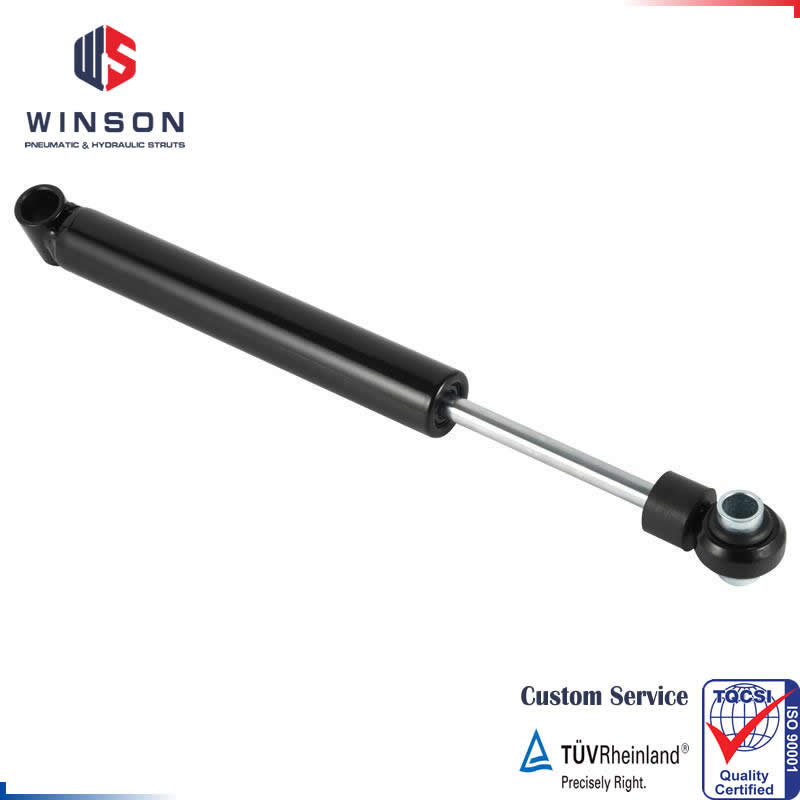

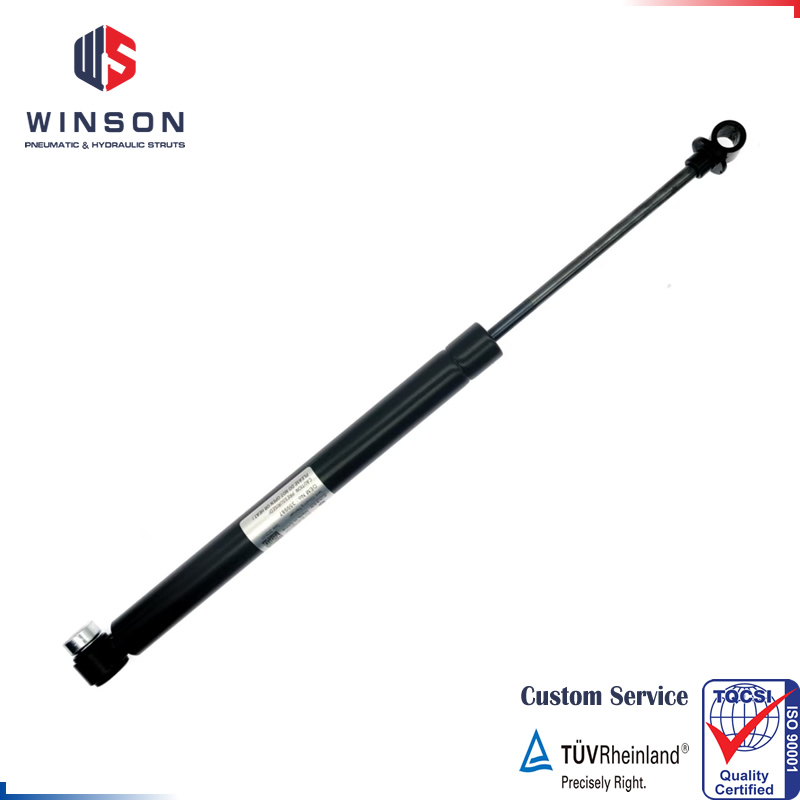

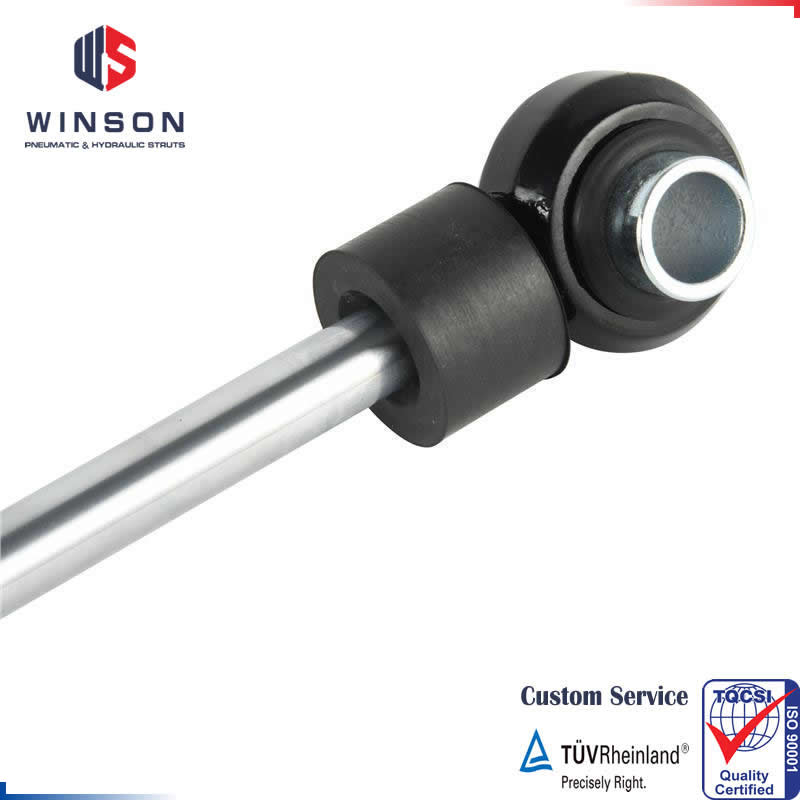

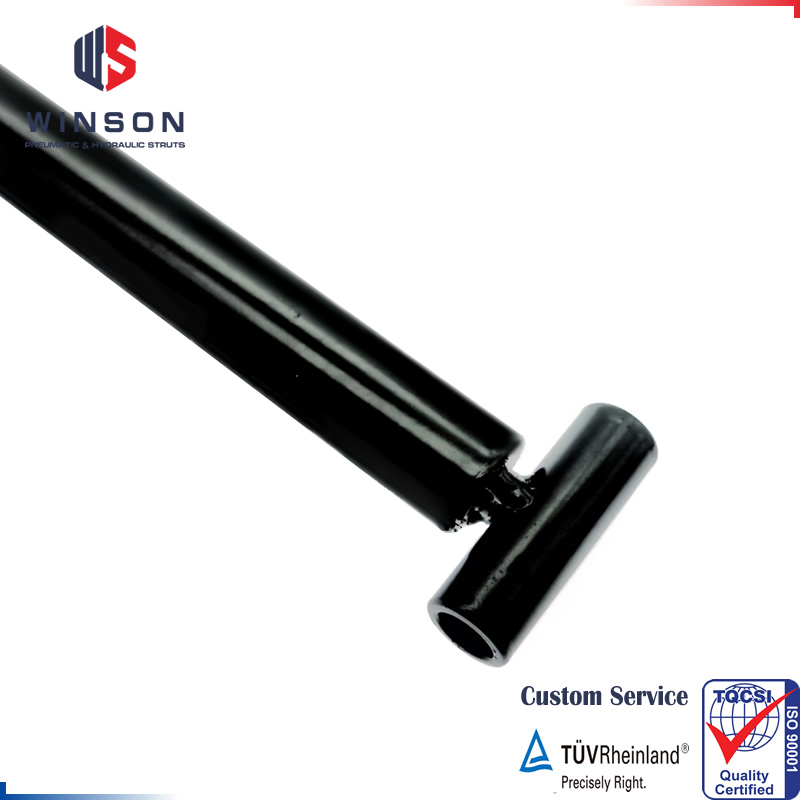

Brake Overrun Damper

Winson is proud to offer its trailer brake coupling overrun dampers to ensure safe and reliable braking. Our hydraulic dampers are crafted from the highest quality materials, offer superior performance, and are custom-made to fit the exact specifications of your trailer.

Our trailer brake dampers OEM No.:359987,370589,370556,365482 / 580436, 353936, etc. also custom according to your sample.

Product Detail

Features

Overrun dampers ensure the controlled operation of the brakes on trailers, caravans, boat trailers, horse trailers, and folding trailers. They act like a shock absorber, and if damaged, your vehicle may bounce, drift while braking, or the trailer will "nose dive" into the back of your vehicle.

Dampers are mainly used as a buffer role, it's biggest feature is the force of gas spring changed by travel speed change. when the action point which guided by outside force to the gas spring with a fast movement,the gas spring's resistance will increase. and when the point of movement is very slow, virtually almost no resistance.

Winson Specs: ZQ8-24, ZQ10-28

ZQ means Hydraulic Damper

8-27 & 10-28 means the piston rod diameter- cylinder tube diameter

Fundamental difference between hydraulic damper and gas spring:

The hydraulic damper is a hydraulic feed speed control device that can freely adjust the cylinder feed speed within the desired range from low speed to high speed.

There are two types of control methods: spring return type (RB type) and air return type (R-A type), which can be selected according to the application. Gas spring is an industrial accessory that can function as support, buffer, brake, height adjustment and angle adjustment.

The gas spring is filled with inert gas - nitrogen, while the hydraulic damper is filled with lubricating oil (or call it damping oil). Industrial Applications: Hydraulic Dampers are used in washing machines, refrigerators,fitness & medical facilities and other industries for bear the responsibility of shock absorption or damping.

Specifications Of Trailer Brake Hydraulic Damper:

• Material: Steel

• Finish: Zinc Plated

• Type: Single-Acting

• Maximum Pressure:2000psi

• Operating Temperature: -30°C to +80°C

• Design: Non-Adjustable, Oil-gas mixing

• Running: Piston rod automatically eject slowly after compression

• Features: Enhanced dampening capabilities for quieter braking

• Installation: Easy to install with just basic hand tools

• Compatibility: Compatible with most trailer brake systems

• Funnel Capacity: 8 oz.

Applications

The Brake Hydraulic Damper is used in many applications, including automotive braking systems, industrial machinery, gearboxes, and other applications that require precise control of pressure, force, and torque. It is also used in vibration dampening, energy absorption, and noise and vibration control.

Various Gas & Hydraulic Struts for your best solution
