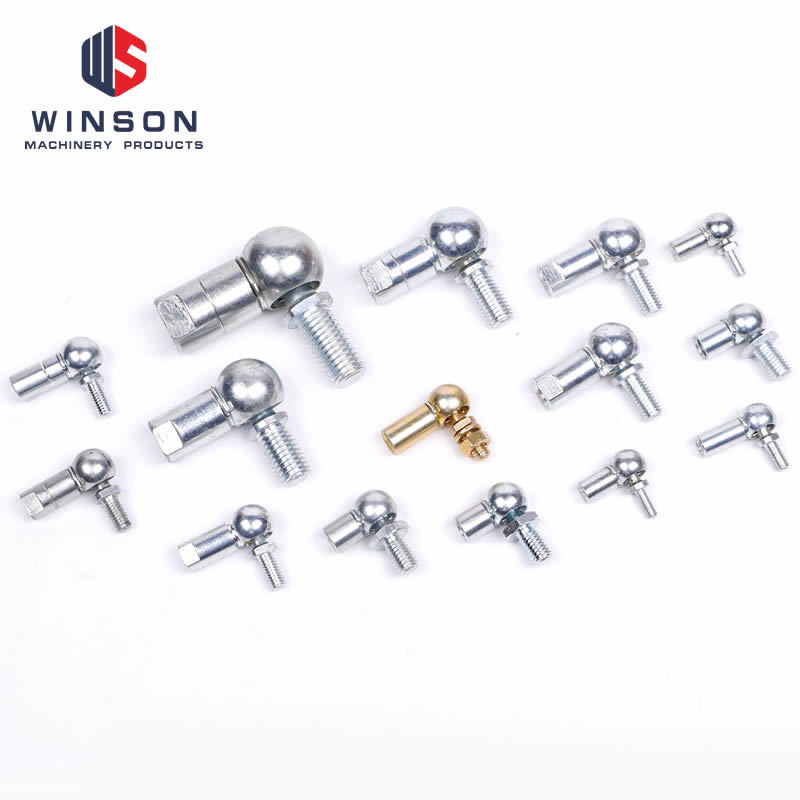

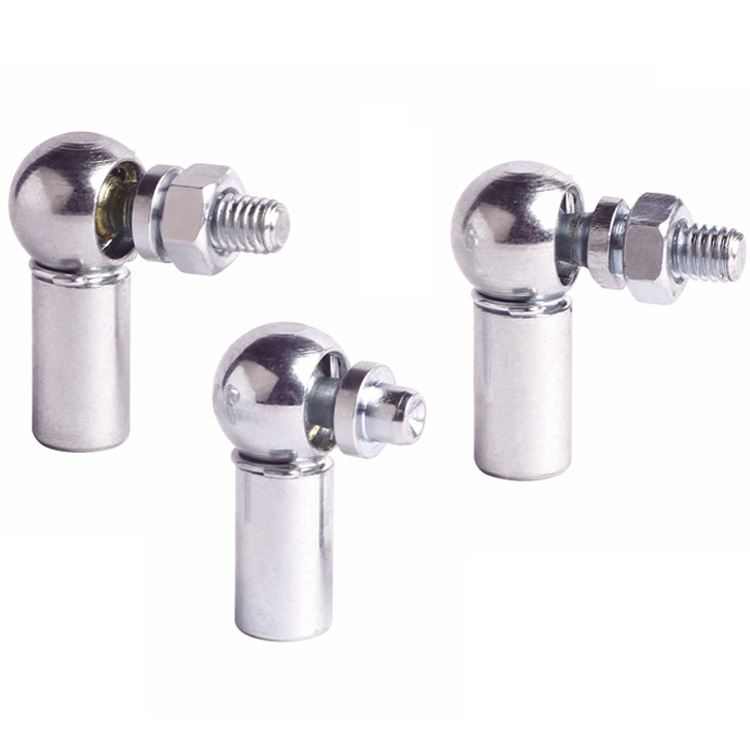

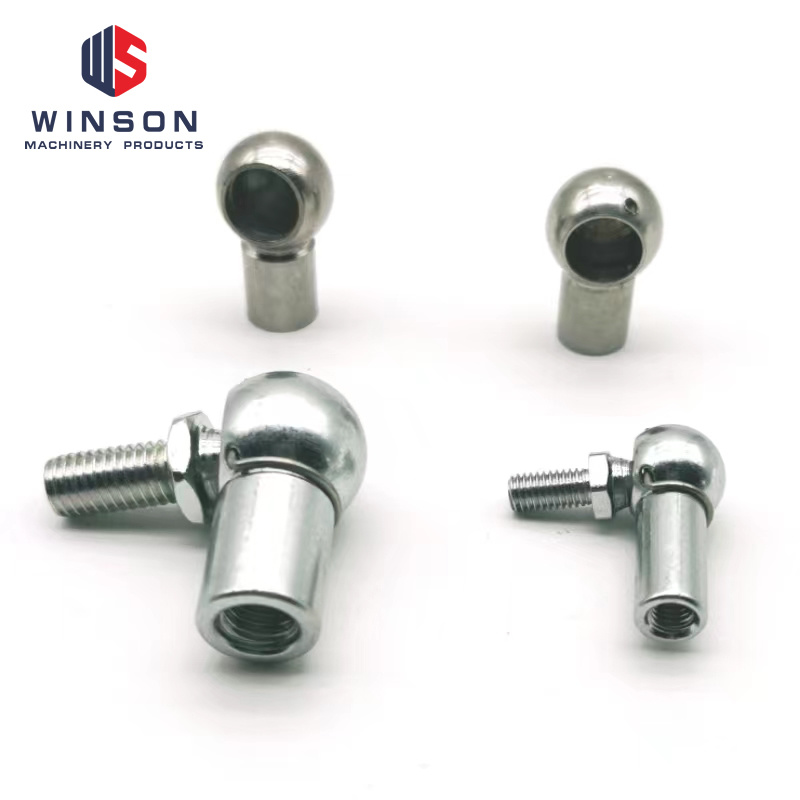

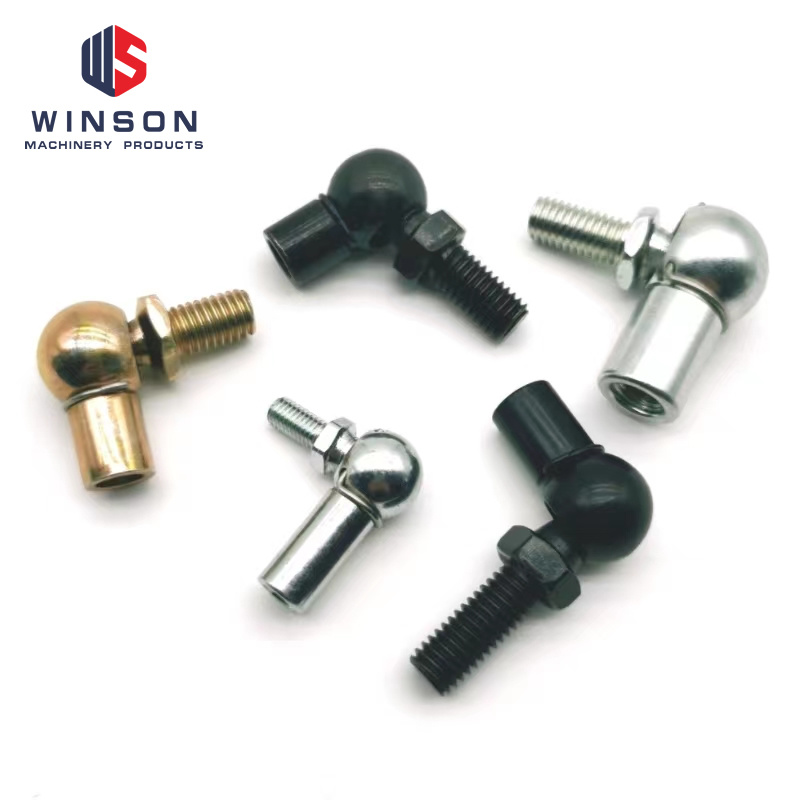

Angled Ball Joints

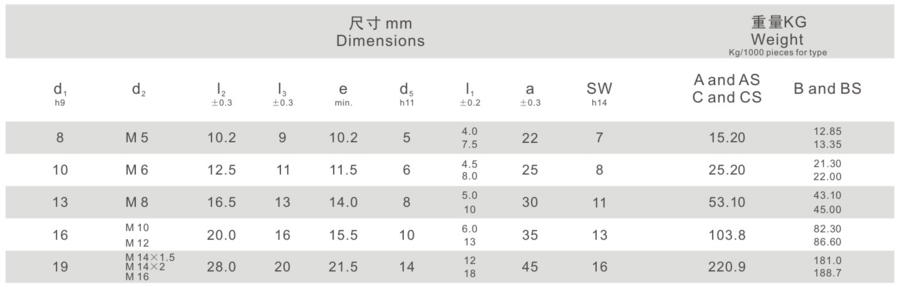

Specification Of DIN 71802 Angled Ball Joints

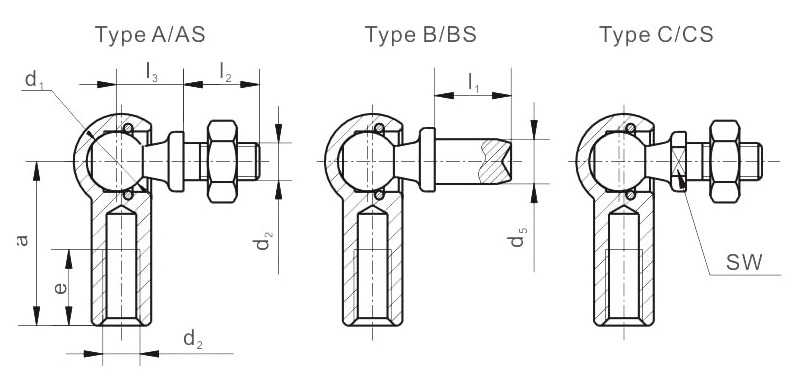

1) Type A、B、C without safety clip on the ball socket

Type AS、BS、CS with safety clip on the ball socket.

2)   Ball stud of Type C、CS with spanner surface.

3)   Alternative left-hand thread for the ball socket.

4)   Ball socket with or without spanner surface or hexagon surface as required.

5)   Ball stud with or without sealing cap as required.

6） Ball stud with or without nut as required.

Material and surface treatments:

Ball stud: medium carbon steel 45; Ball socket: low carbon steel Q235A; Snap ring and safety clip: spring steel. Zinc plating.

Alternative stainless steel 304, stainless steel 303, stainless steel 316. Surface passivation.

Ningbo Winson Machinery Products Co., Ltd is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Ningbo Winson Machinery Products Co., Ltd is leading DIN71802 Angle joints Manufacturers and AS-BS-CS Din 71802 Angled Ball Joint suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured AS-BS-CS M5-M16 Din 71802 Angled Joint are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
