Lockable Gas Spring
Lockable Gas Spring for Various Applications
A Lockable gas spring is a device which consists of a cylindrical tube filled with pressurized gas and a piston. It is usually used to resist external forces or to support a load in applications such as medical furniture and reclining chairs. The lockable type gas spring has adjustable pressure that can be locked with just a single press of a button.
Components and Working Principle of Lockable Gas Spring
The basic components of a lockable gas spring include a piston, a spring cylinder, a pressurized gas, and a locking mechanism. The gas pressure is maintained at a constant level and sealed in the cylinder. A piston moves back and forth in the cylinder as external force is applied. The locking mechanism can be used to adjust the pressure and lock the piston in certain positions.
Technical Requirements and Applications of Lockable Gas Spring
The technical requirements of lockable gas springs vary depending on the application. The gas pressure should be controlled at within a certain range while the locking mechanism should be able to maintain the pressure at a predetermined level. Lockable gas springs can be used in applications such as medical furniture, reclining chairs, and other equipment requiring adjustable gas springs.
Customization of Lockable Gas Spring from Winson Gas Spring
Winson Gas Spring is a China-based gas spring producer which can provide customized lockable gas spring with various size, pressure, and customization options. The technical team also provides services such as design, research and development help, and product customization. With the help of their services, custom lockable gas springs can be designed to fit specialized applications.

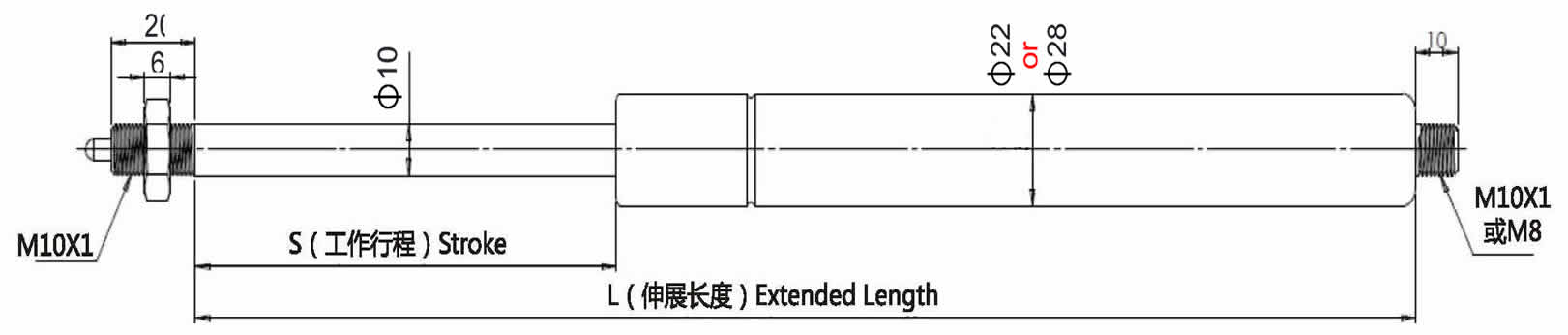

Type | d | D | Stroke (S) | Elastic lockin gLength(L) | Rigid Locking | F1 Force |
|---|---|---|---|---|---|---|
| KQ8-22 | 8 | 22 | 20-500 | 2S+55mm | 2S+S/3+45mm | 50-600N |
| KQ10-22 | 10 | 22 | 20-600 | 2S+55mm | 2S+S/3+45mm | 50-800N |
| KQ10-26 | 10 | 26 | 20-600 | 2S+55mm | 2S+S/3+45mm | 50-800N |
| KQ10-28 | 10 | 27/28 | 20-800 | 2S+55mm | 2S+S/3+45mm | 50-1000N |
| Customize | We also can Custom KQ10-18,KQ12-27/28 | |||||
| Comments: | Lockable gas spring is also called controllable gas spring. According to the different locking medium, it can be divided into two categories: elastic locking and rigid locking. The elastic locking medium is gas, and the rigid locking medium is liquid, because the liquid is incompressible, the gas spring will get a relatively high locking force value after locking, and the displacement can be ignored, so it is called rigid locking. Due to the difference in structure, rigid locking gas springs can be made into tensile rigid locking, compressive rigid locking and bidirectional rigid locking. In order to meet the requirements of different working conditions. | |||||
